HVAC Design Review Guide 2012 (eBook)     [Prices/Orders]

Now available, ready to download, our comprehensive HVAC Design Review Guide - 2012. A detailed review guide, arranged in a practical, drawing sheet-by-drawing sheet format for use by HVAC project managers or project engineers. It also can be used as a Training Manual for HVAC designers and engineers, to help reduce errors and omissions in construction document preparation.

Reduce Errors and Omissions --- Reduce Change Orders (Also a training manual for Designers/Engineers!!)

NEW:  Request a FREE Abridged edition of HVAC Design Review Guide, email to:  support@hvacdesignsolutions.com

Description

This thorough HVAC Design Review Guide is specifically written to assist with final checking of construction documents, before issuing the drawings for bidding, for building department submittal, or for construction. It can be used for final checking by the Project Manager or Project Engineer prior to release to QC or Peer Review department.

The HVAC Design Review Guide includes over (230) pages and spreadsheets that cover many of the design and engineering requirements associated with typical projects. Hyperlinks are provided to help select the topics that are relevant to the project being reviewed. Included are "rule of thumb" equipment capacities and system flow rates, general constructability, and "spot-checks" of ductwork and pipe sizes.

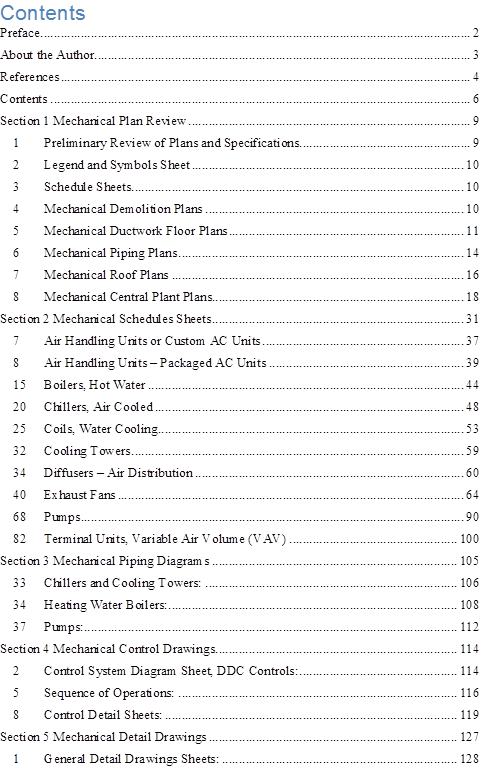

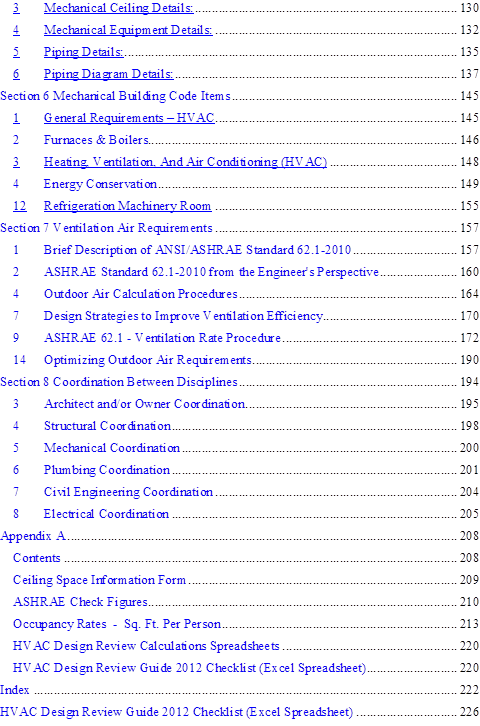

eBook Contents: (Click picture below to enlarge)


Design Tools - Spreadsheets
(Click pictures below to enlarge)

Also included (attached) are Microsoft Excel spreadsheets with design tools such as:

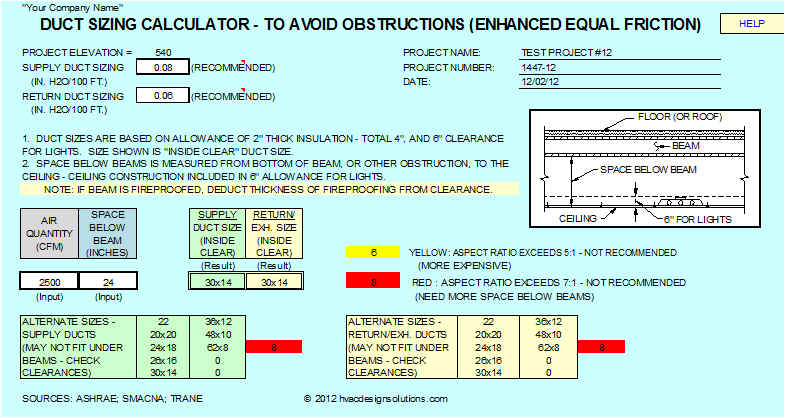

electronic duct sizing,wpe4.jpg (64943 bytes)

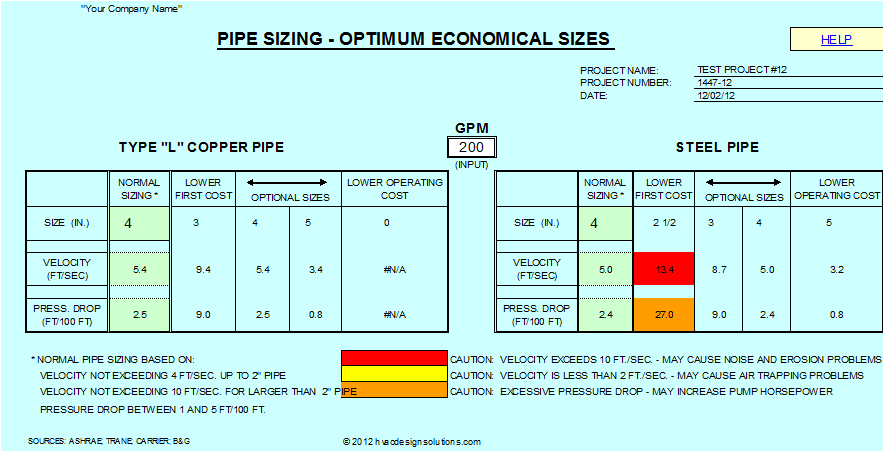

electronic pipe sizing,wpe6.gif (23307 bytes)

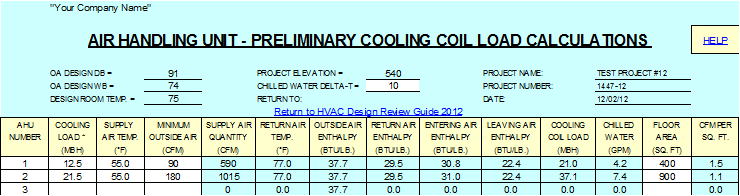

cooling and heating psychrometric sizing,wpe8.gif (14304 bytes)

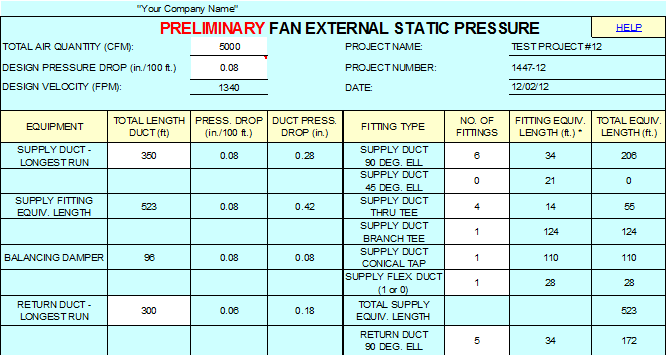

"preliminary" fan static pressure calcs,wpeA.gif (18707 bytes)

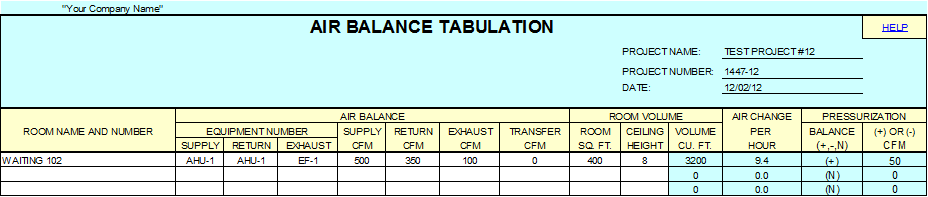

air balance tabulations,wpeC.gif (12352 bytes) and more.


Expanded Description

The eBook contains detailed review items for:
Mechanical Plan Review, Mechanical Schedules Sheets, Mechanical Piping Diagrams, Mechanical Control Drawings, Mechanical Detail Drawings, Mechanical Building Code Items, Ventilation Air Requirements, Coordination Between Disciplines, and several check figures sheets. Also included are HVAC Design Review Calculations Spreadsheets.

One section, "Mechanical Schedule Sheets", contains over 70 pages of review items for over 85 types of mechanical equipment. Review is arranged alphabetically by equipment type.

The "Coordination Between Disciplines" section includes:
Architect and/or Owner Coordination, Structural Engineer Coordination, Mechanical Engineer Coordination, Plumbing Coordination, Civil Engineering Coordination, and Electrical Engineering Coordination.

The HVAC Design Review Guide could save the Project Manager/Project Engineer hundreds of hours in correcting errors or omissions that come up during construction. Just one item, such as: "
a. Verify (Electrical) coordination with Mechanical drawings for fire/smoke dampers, duct smoke detectors, duct fire stats, electric motor operated valves and dampers, and alarm points. Verify it is clear who furnishes, who installs, and who wires.", could save hundreds or thousands of dollars in change orders during construction.

Also provided are "rough estimate" guides to check against the values listed on the drawings. For example: "Estimate unit external and total static pressure and compare with scheduled static pressure. For rough estimate, measure distance of longest duct run, count elbows and tees – allow approximately 40 feet equivalent for each elbow and tee, add approximately 50 feet equivalent for final take-off tap and short section of flex duct. Total the measured length and equivalent lengths and multiply by an average 0.08” static pressure per 100 ft. equivalent. Add to this number an additional 0.40” for: VAV (or other terminal control device), supply diffuser, and balancing damper losses. Calculation summary: ((Length of longest duct + (# elbows and tees X 40’ each) + 50’) X (0.08/100)) + 0.40 = approximate external static pressure. For total static pressure: “Max. Air PD” for heating coil + approximately 0.75” for dirty filters + approx. 0.50” for casing losses + above calculated external static pressure = approximate total static pressure."


Prices/Orders

The HVAC Design Review Guide 2012 will be available for download upon receipt of payment confirmation. To order, go to the
[Prices/Orders Page] and "add to the shopping cart".
