FAN-SP AND PUMP-HD DESIGN

Combined package of two essential programs for HVAC Engineers and Designers.  Programs include complex formulas, fitting coefficients, fitting types, and equipment and accessory loss coefficients, to assure efficient use of your time and to increase your Value to your  Clients.  Valuable tools to assist with reducing friction losses in air and hydronic distribution systems, which could result in reduced energy usage.  Calculations also help with rightsizing of air and hydronic equipment and systems.



Project Information

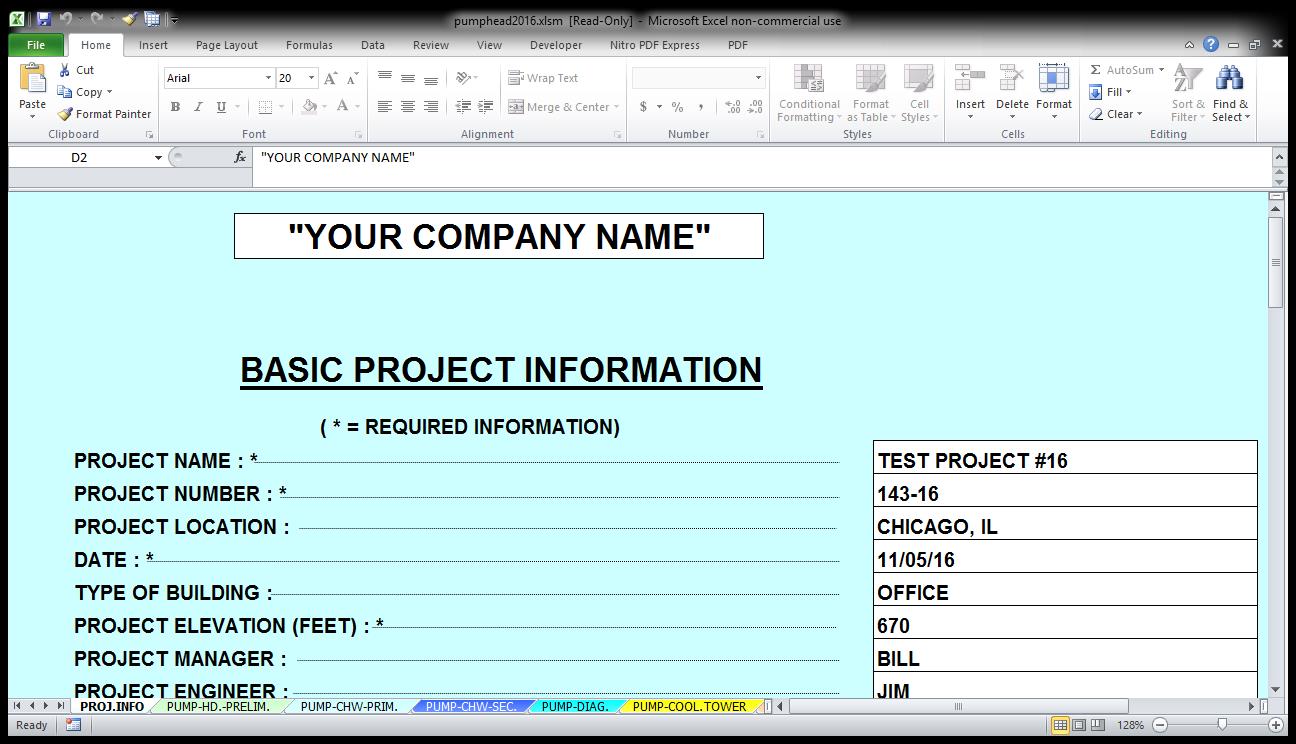

The first page of the Fan Static Pressure or the Pump Head Design Package is the "Basic Project Information" form.  This should be the first Form to be completed for every project.  Project information that is inserted in this Form is automaticallyprojinfo16.jpg (132863 bytes) transferred to other Programs for use in calculations and for documenting project data.  (Click Image to enlarge)

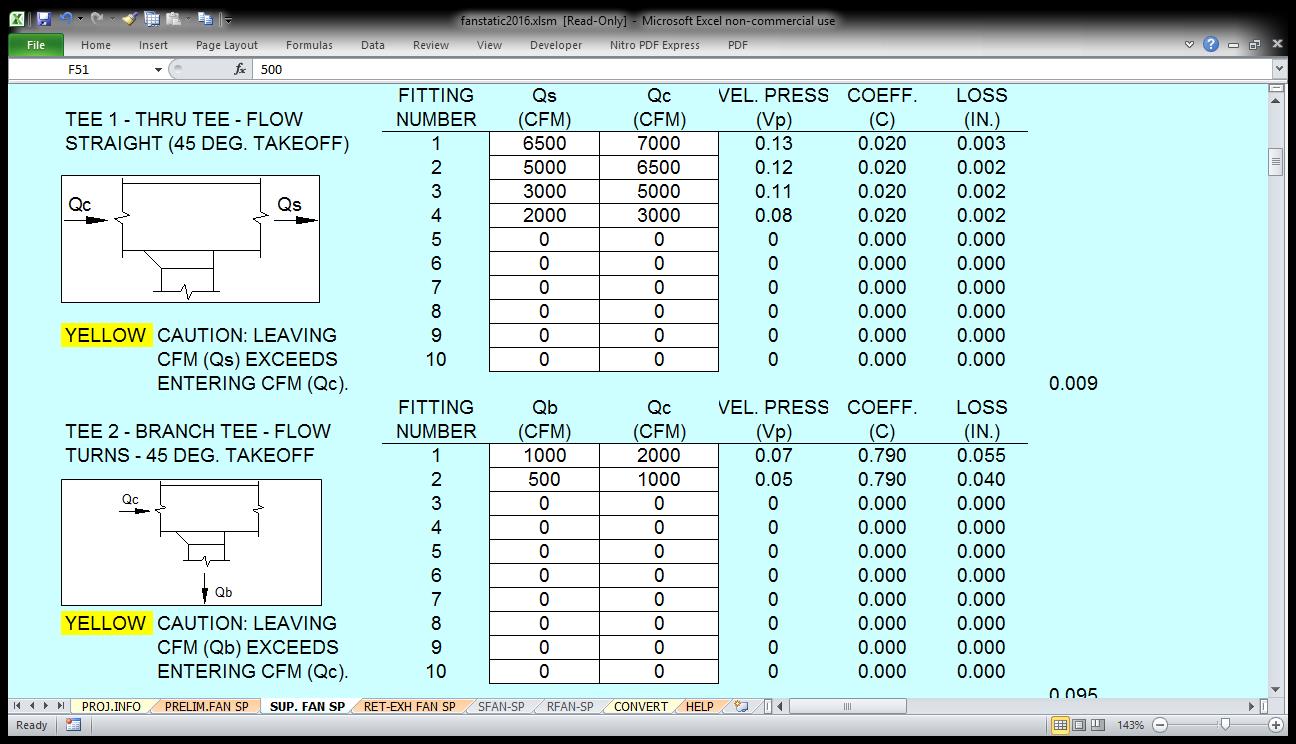

Two extensive Programs are included for Fan External Static Pressure Calculations - Supply Fan andfanstatic2017.jpg (143545 bytes) Return/Exhaust Fan Calcs.  Both Programs include an extensive database of Ductwork Fitting Coefficients and "Generic" Equipment Pressure Drop data.  Multiple alternatives are provided for design static pressure for the ductwork, as well as for the type and arrangement of fittings and accessories.  (Click any image to enlarge)



Pump Head CalculationsImage24.gif (18299 bytes)

Six extensive Programs are included for Pump Head  Calculations - Preliminary Pump Head Calculations (for early stages ofImage25.gif (5663 bytes) design), Primary Pump Calculations (Chilled Water and Heating Water), Secondary Pump Calculations (Chilled Water and Heating Water), and Condenser Water Pump Calculations (Cooling Tower).  All Programs includeImage26.gif (10168 bytes) an extensive database of Pipe Fitting Pressure Drop values and "Generic" Equipment Pressure Drop data.  Multiple alternatives are provided for pipe sizes, design flow rates (GPM), as well as for the type and arrangement of fittings andImage27.gif (8534 bytes) accessories.  (Click any image to enlarge)





Prices/Orders

ALL of the above Programs, Forms, and Extras are included in the Fan-SP+Pump-HD Design Package.  Order now to assure that you will receive the low "Limited Time Special Prices".  Go to the Prices/Orders page for details.
